Water and Chemical Tanks

Cornerstone water systems company produces tanks in various shapes and sizes for storing water and chemicals. We also produce a special tank that comply with food specifications. These tanks are made of high-density polyethylene ( HDPE ) , which is compatible with the requirements of the food and chemical industries. Tanks made of chemical-resistant polypropylene (PP) could also be made.

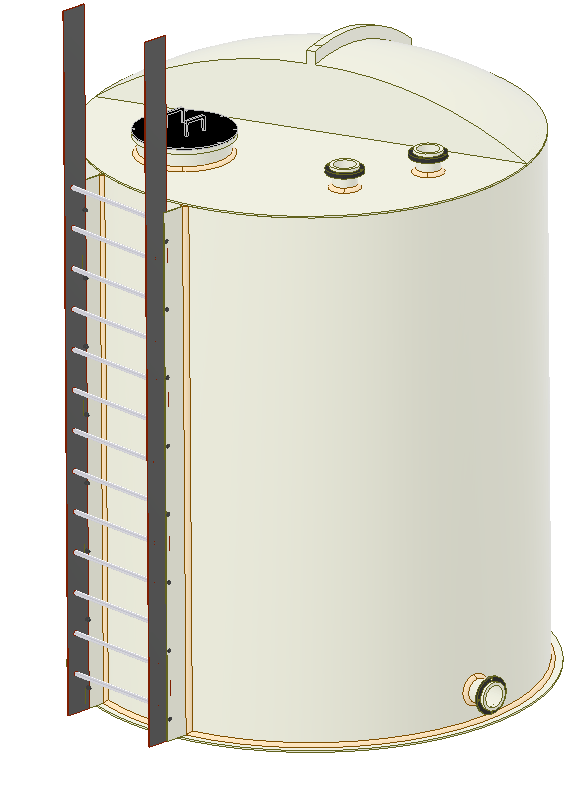

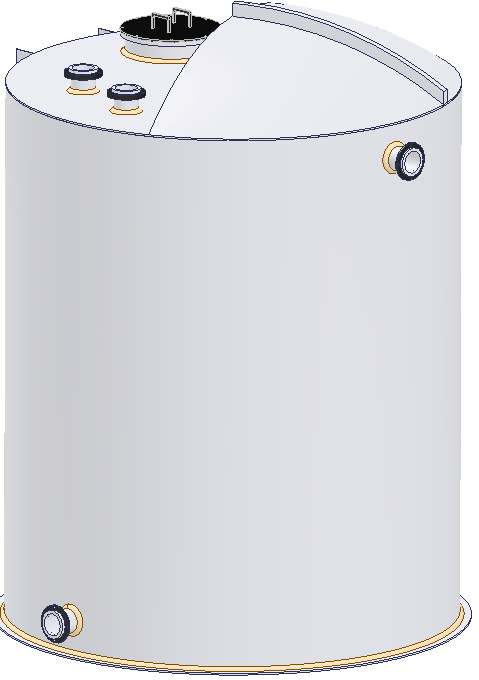

1. Cylindrical Tanks







   Material of Construction	Capacity (m3)	Diameter (m)	Height (m)	Thickness (mm)
   HDPE	10-50	0.5-3.2	1.2-5.2	6-20
   PP	10-50	0.5-3.2	1.2-5.2	6-20

2. Rectangular Tanks

   Material of Construction	Capacity (m3)	Width (m)	Height (m)	Length	Thickness (mm)
   HDPE	5-120	1.2-3.2	1.2-3.2	1.0-12.0	6-20
   PP	5-120	1.2-3.2	1.2-3.2	1.0-12.0	6-20

   All tanks are available with a side ladder and a platform upon request. Cubic tanks can be produced in customized sizes to suit the transport laws on Iraqi roads.
